ROK TOY



1993 Jeep Wrangler

Specifications
Engine2001 Jeep 4.0L H.O., Turbo City Rock-It Intake, MORE Bombproof Motor Mounts, Hi-Flow Cat, Borla Cat-Back Exhaust
TransmissionStock AX-15
Transfer CaseNP-231, RE SYE
Front AxleDana 30, 4.10:1 Gears

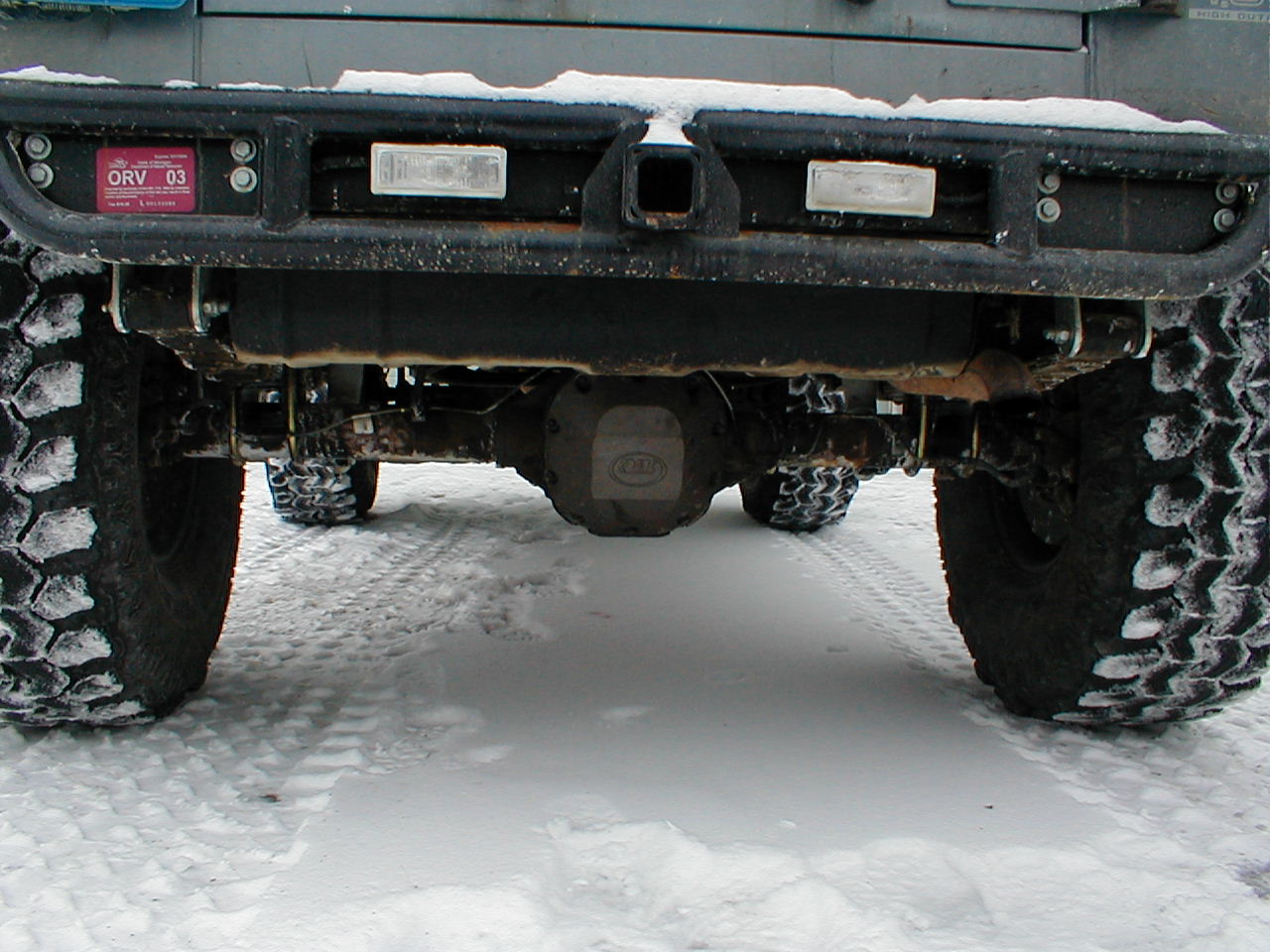

Rear AxleFord 8.8, 4.10:1 Gears, Rear Disc Brakes, Crane Diff Guard
SuspensionFrontSOA, Rubicon Express Greasable Shackles, Rubicon Express Greasable Main Eye Bushings
RearSOA, Currie "Boomerang" Greasable Shackles, Rubicon Express Greasable Main Eye Bushings
Wheels35x12.50x15 Super Swamper SSR's on Black Wagonwheels
InteriorStock
ProtectionORF Front & Rear Bumpers
MiscWarn 8274-50 Winch, Hella 500's on Windshield Hinges
Future Plans4.6L Stroker, NV3550, Flipped 4:1 Dana 300, Front: Dana 44, 4.88:1, Hi-Steer, LockRight, Rear: 4.88:1, Detroit Locker, 36x12.5 TSL Radials, Full Cage, ORF Rear Tire Carrier


Pictures

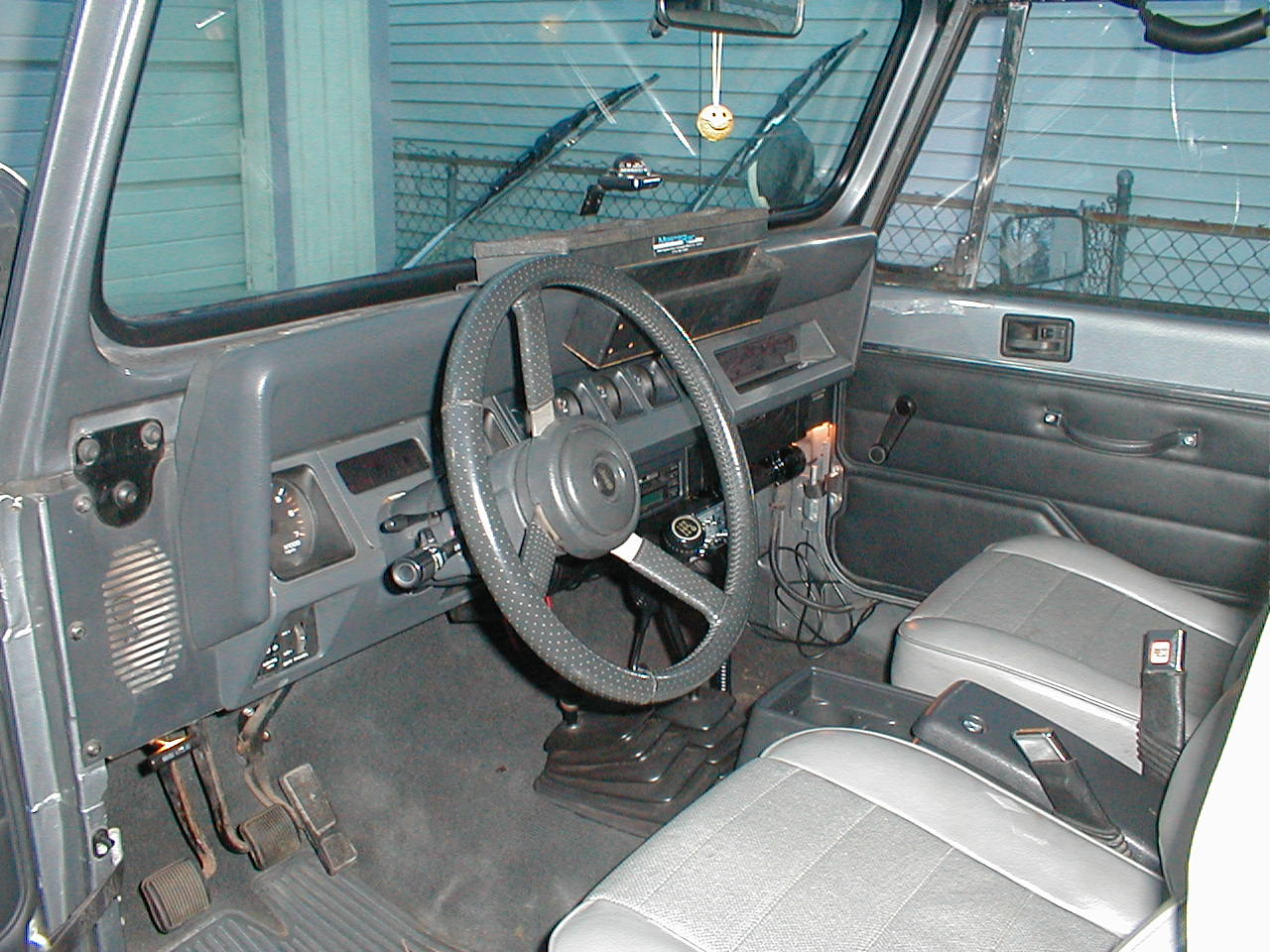

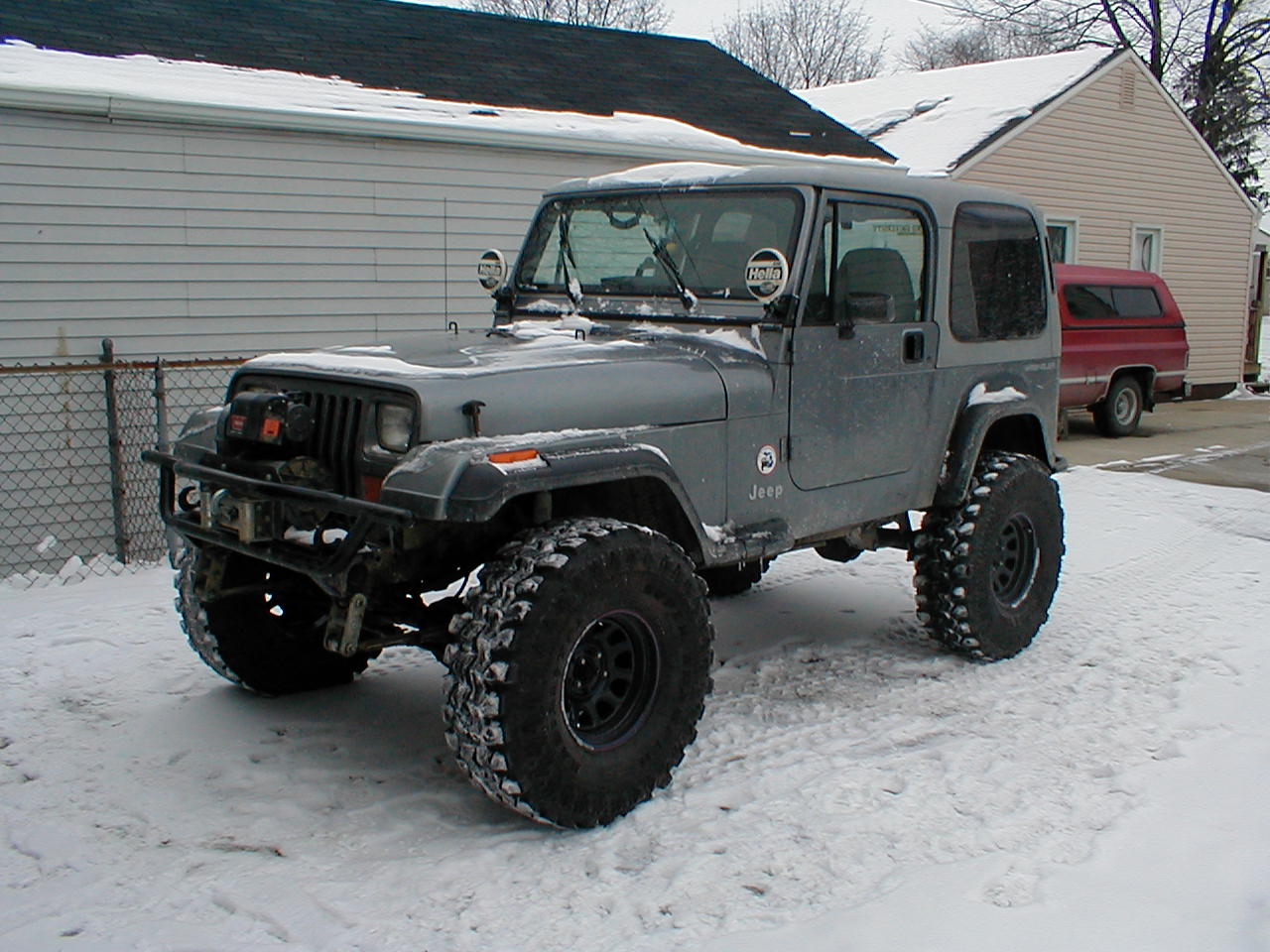

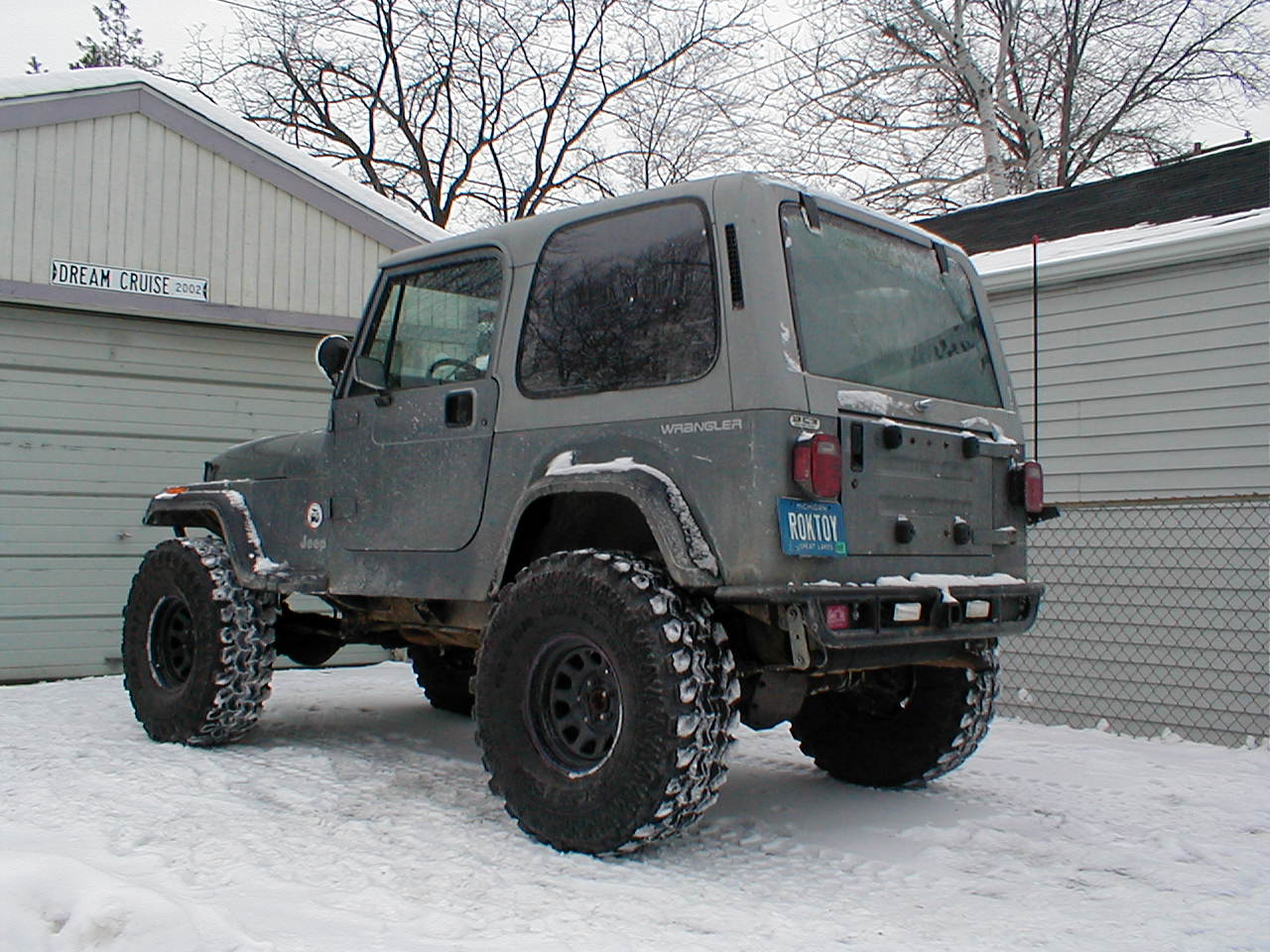

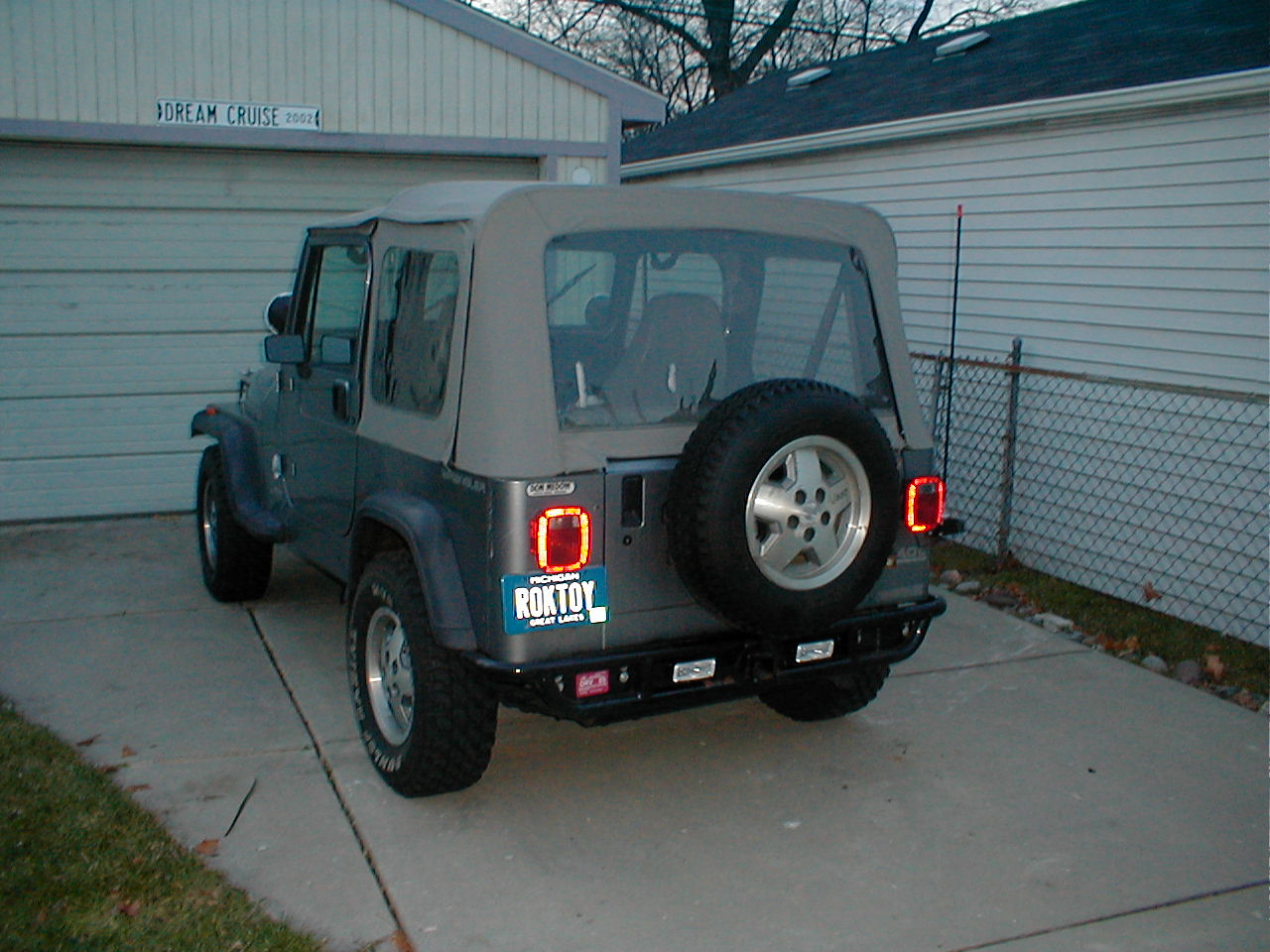

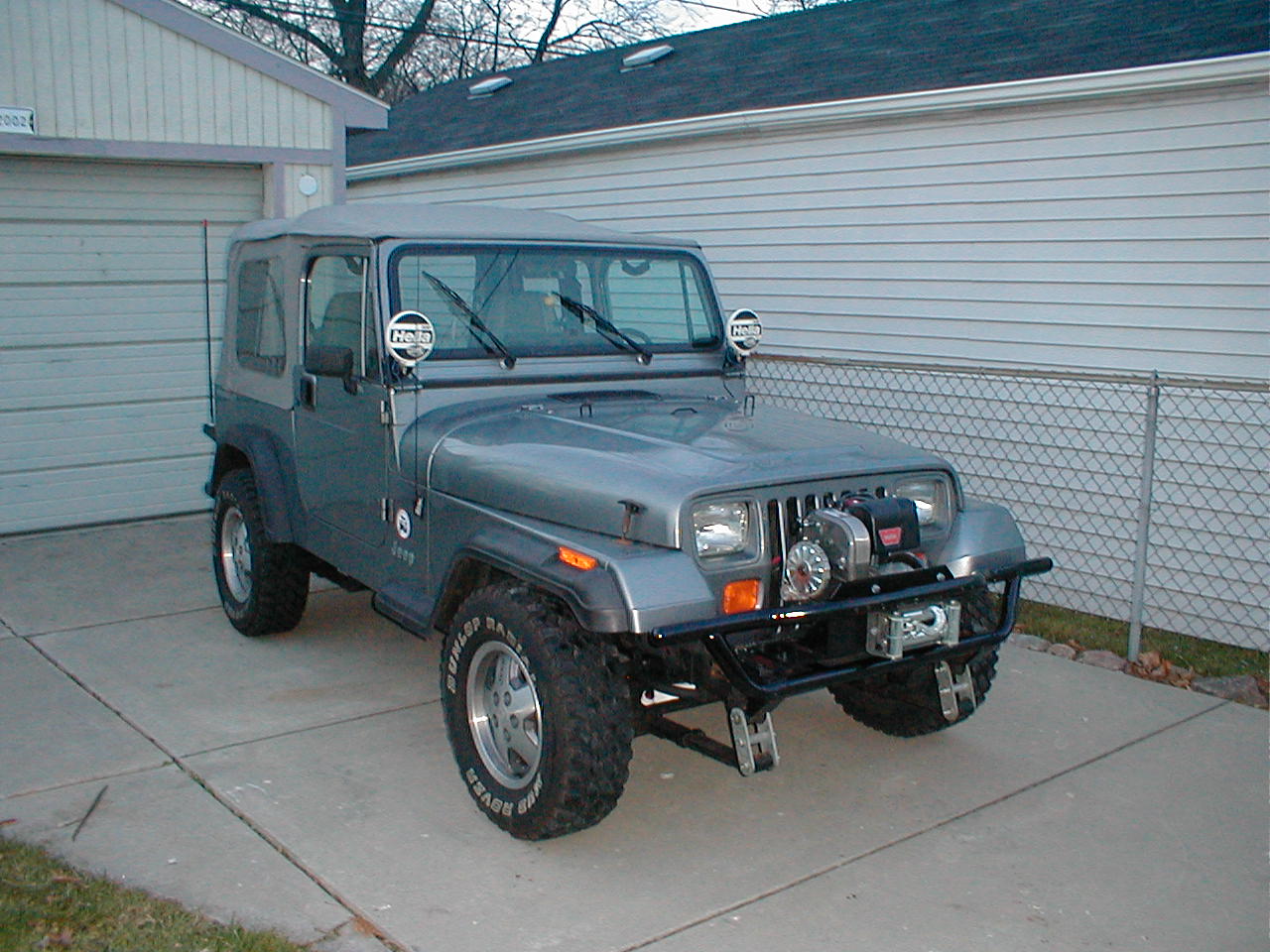

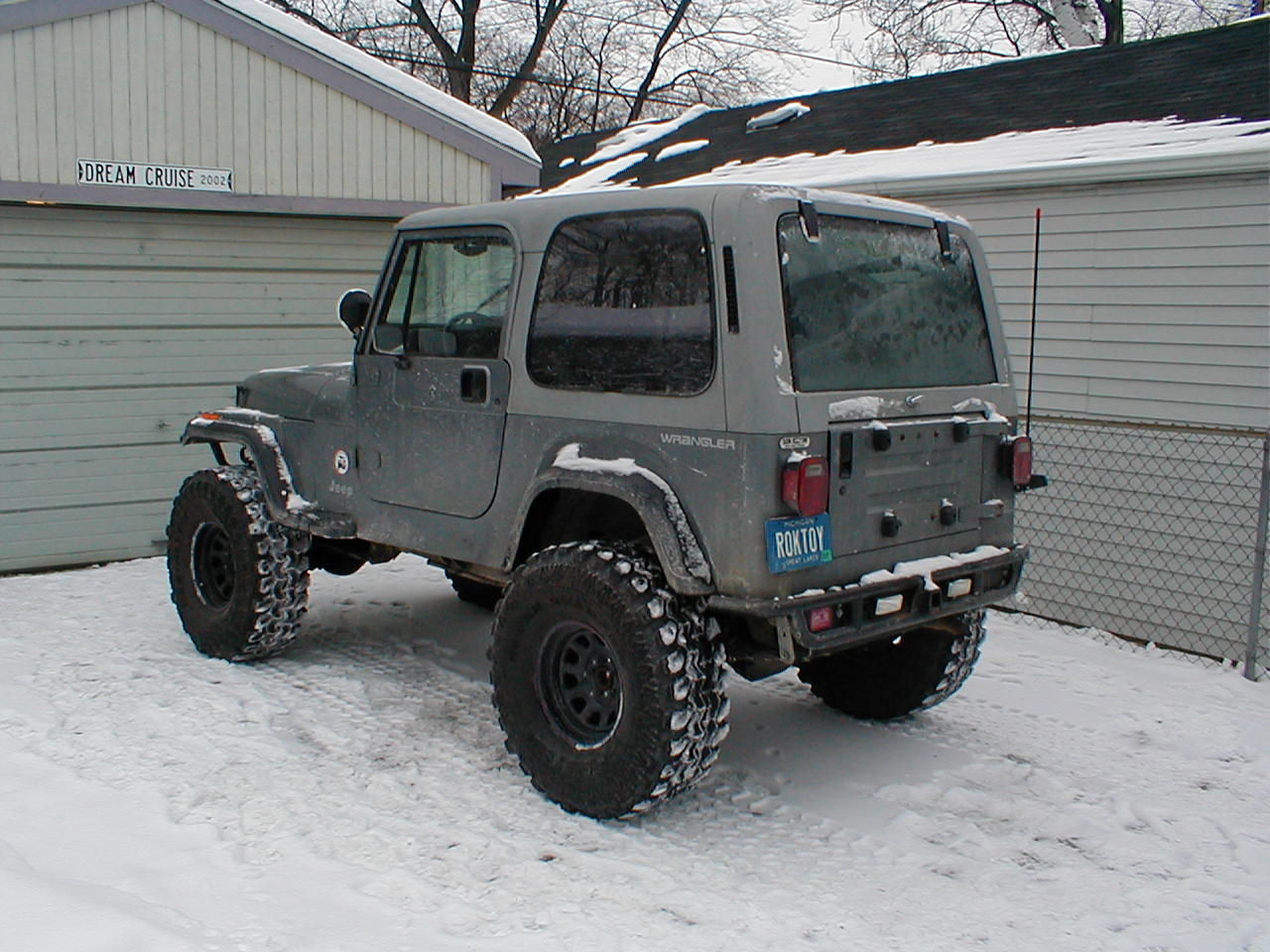

Baby_Jeep_Front.jpg (18K) Baby_Jeep_Back.jpg (18K) Jeep_Inside.jpg (18K) Jeep_Front.jpg (18K) Jeep_Back.jpg (18K) Jeep_Back_Low.jpg (18K) Ford8.8_Crane.jpg (18K) rod03.jpg

What's New?
Jan 11, 2004SOA and Ford 8.8 Swap Finished!
Feb 11, 2004Installed Turbo City MaxFlow Rock-It Intake.
Mar 07, 2004Installed Hi-Flow Cat and Borla Cat-Back Exhaust.

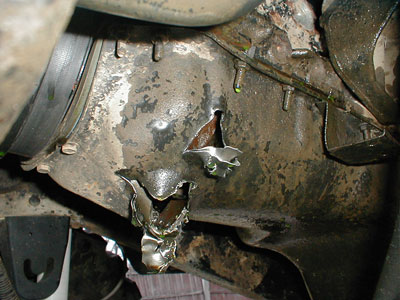

Mar 12, 2004Threw Cylinder #1 Piston Rod through Oilpan ... DOH!
